100G

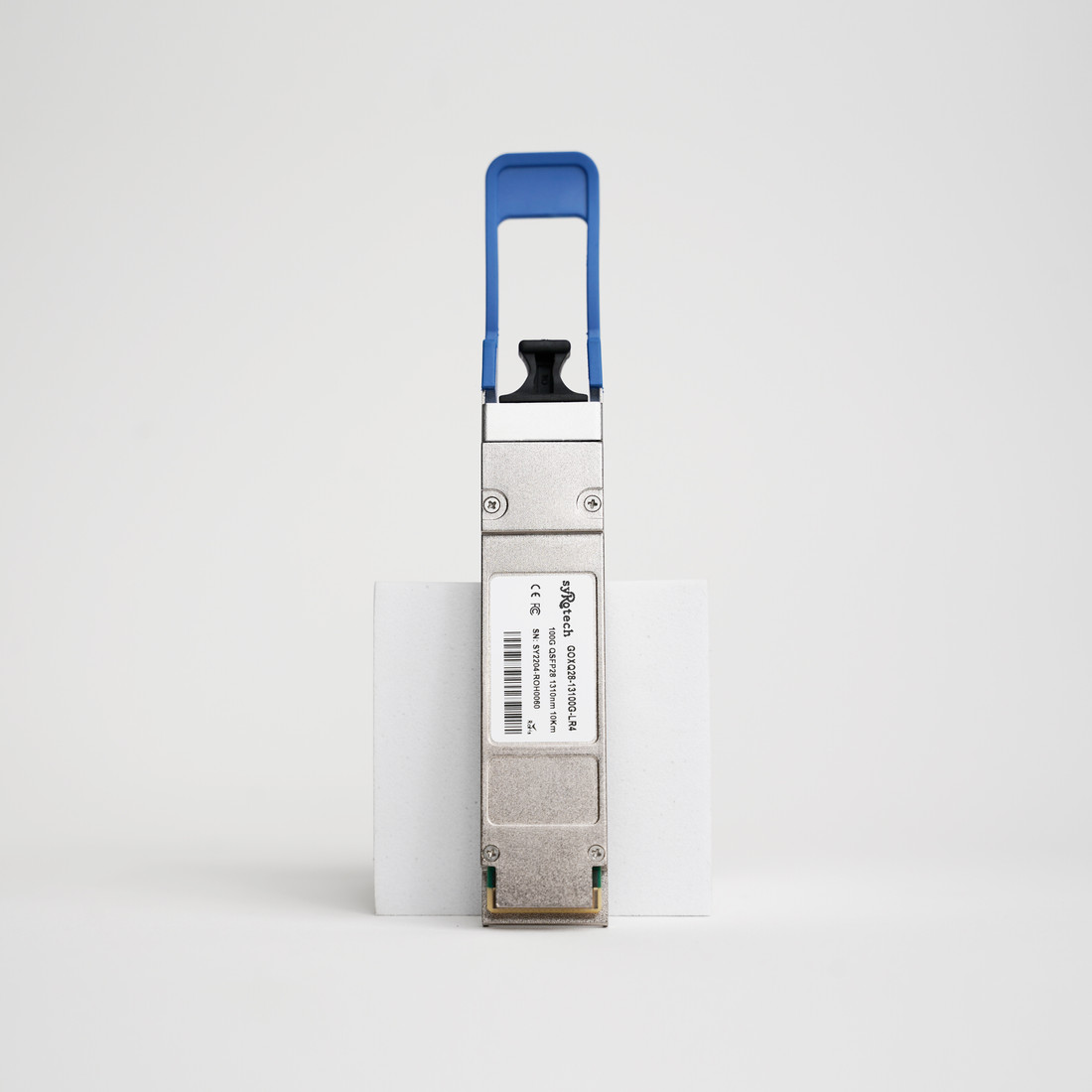

GOXQ28-13100G-LR4

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Specifications : 4 Channel Full Duplex Transceivers Module. Transmission Data Rate up to 26Gbps Per Channel. 4*26Gb/s DFD Based LAN-WDM Colling Transmitter 4 Channel PIN ROSA. Low Power Consumption. 3.5W Hot Pluggable QSFP From Factor Up to reach 10km for G.652 SMF Duplex LC receptacles. Built in digital Diagnostic Function. ROHS 6 Compliant.

Highlights

4 Channel Full Duplex Transceivers Module.
Transmission Data Rate up to 26Gbps Per Channel.
4*26Gb/s DFD Based LAN-WDM Colling Transmitter 4 Channel PIN ROSA.
Low Power Consumption.
3.5W Hot Pluggable QSFP From Factor Up to reach 10km for G.652 SMF Duplex LC receptacles.
Built in digital Diagnostic Function.
ROHS 6 Compliant.

Call sales SFP catalogue

Made in India
Technical support in 12 languages
7 RMA service centres

100G

GOXQ28-13100G-ZR4

GOXQ28-13100G-ZR4 is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face.

View product

100G

GOXQ28-13100G-ER4

GOXQ28-13100G-ER4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers.

View product
