GOXP-C96-02
10GBASE-T is high performance and high speed copper transceiver module over Cat 6a/7 cable with a link of 30 m. It is specifically designed for 10 Gigabit Ethernet bidirectional communications.
Copper

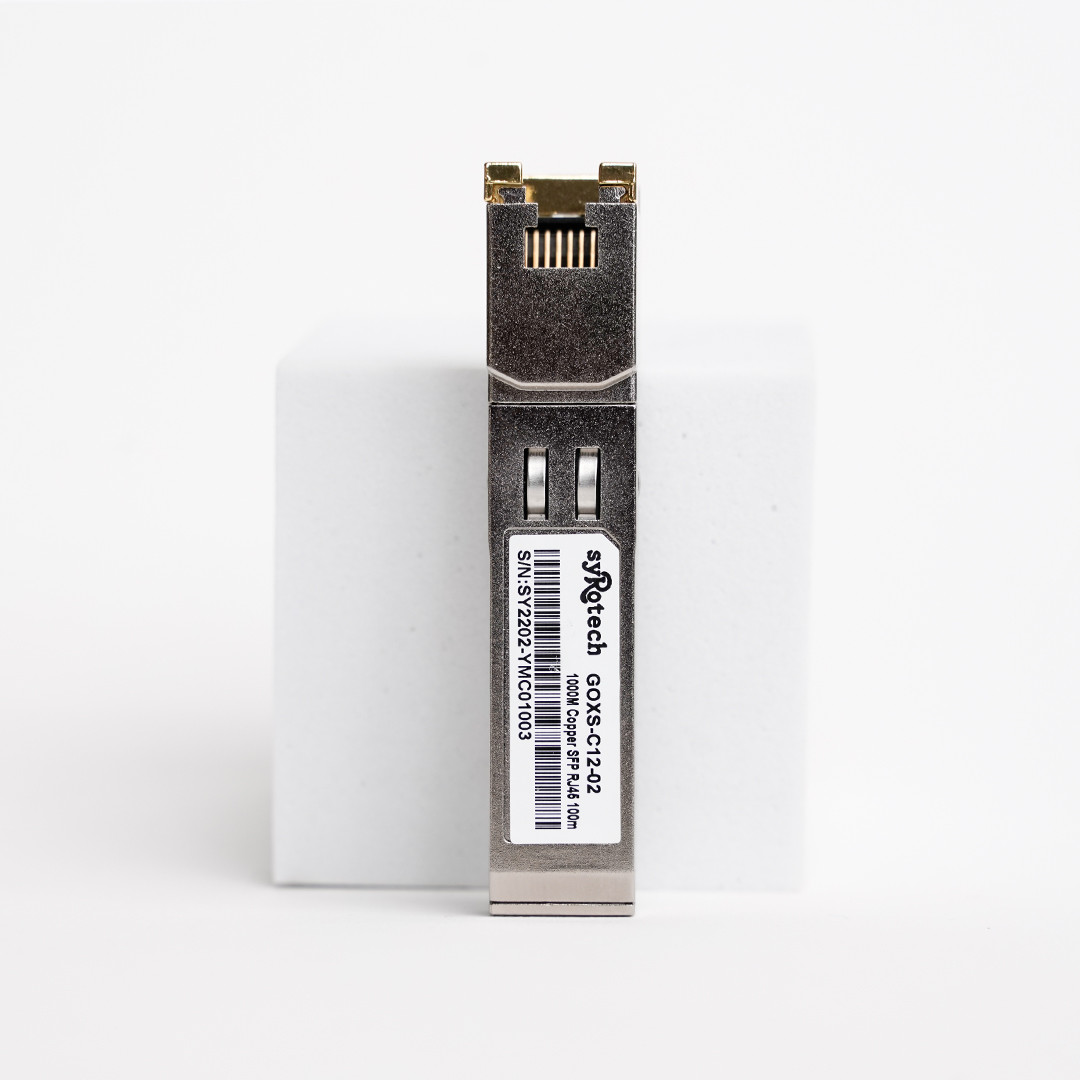

GOXS-C12-02
Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. Specifications : Up to 1.25Gb/s bi-directional data links Hot-pluggable SFP footprint Extended case temperature range (-40°C to +85°C) Fully metallic enclosure for low EMI Low power dissipation (1.05 W typical) Compact RJ-45 connector assembly Access to physical layer IC via 2-wire serial bus
Highlights
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Extended case temperature range (-40°C to +85°C)
- Fully metallic enclosure for low EMI
- Low power dissipation (1.05 W typical) Compact RJ-45 connector assembly
- Access to physical layer IC via 2-wire serial bus
- Made in India
- Technical support in 12 languages
- 7 RMA service centres
